Coil & Key Relocation Bracket For Harley Sportster - 2007 to 2022

The coil and ignition key relocation bracket kit is a direct bolt-on solution for Harley-Davidson Sportster riders looking to clean up the engine bay or accommodate custom builds.

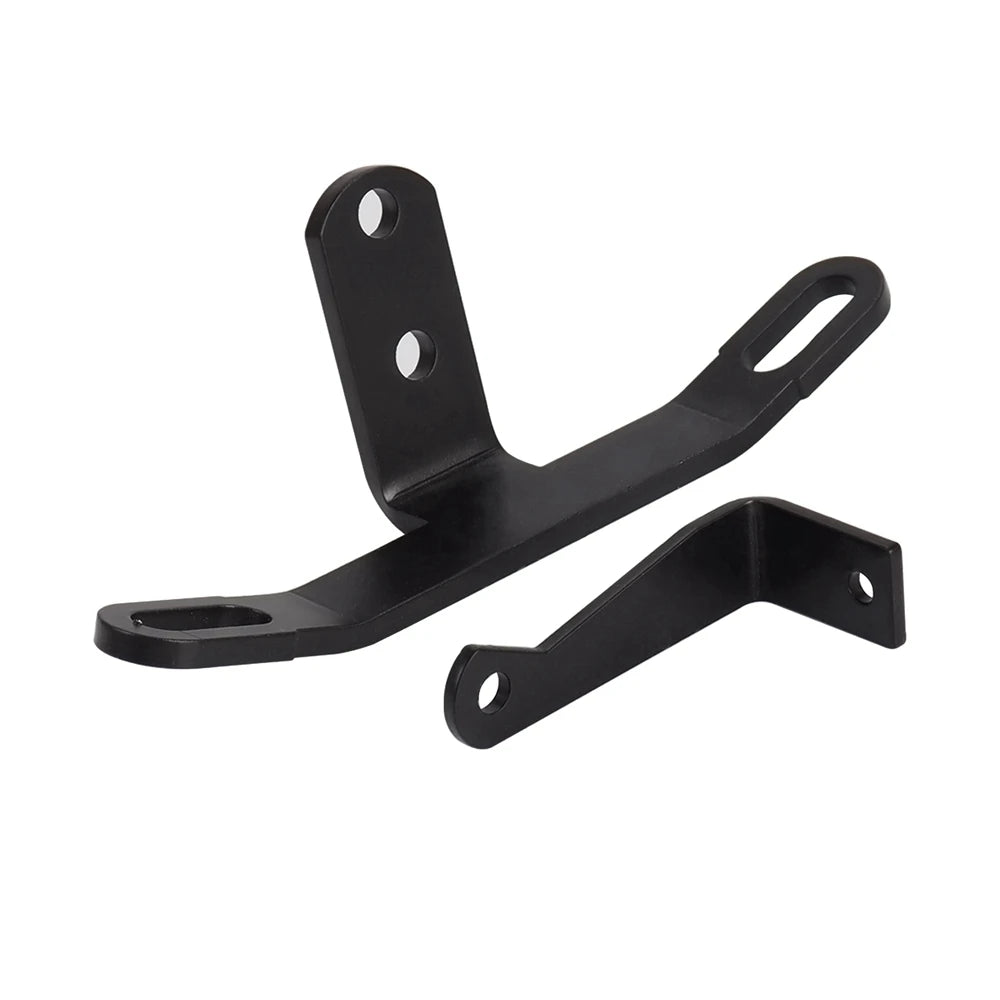

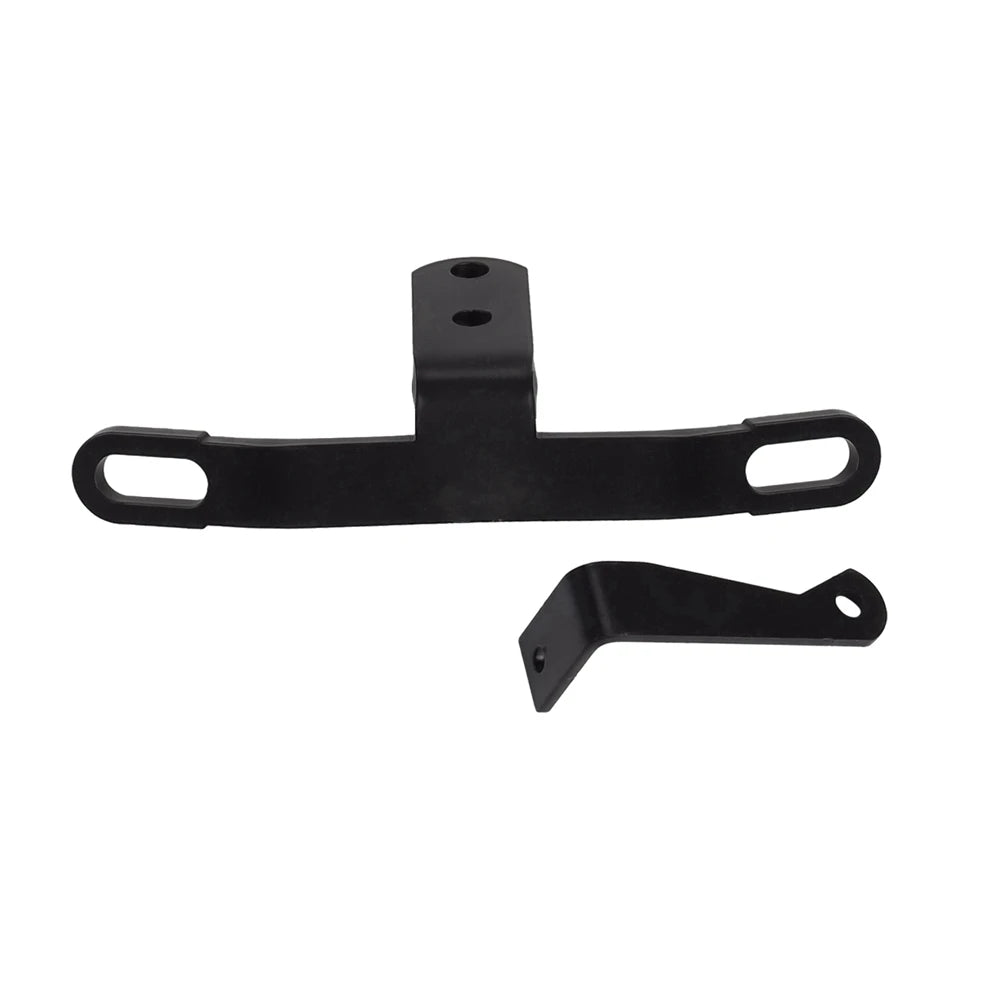

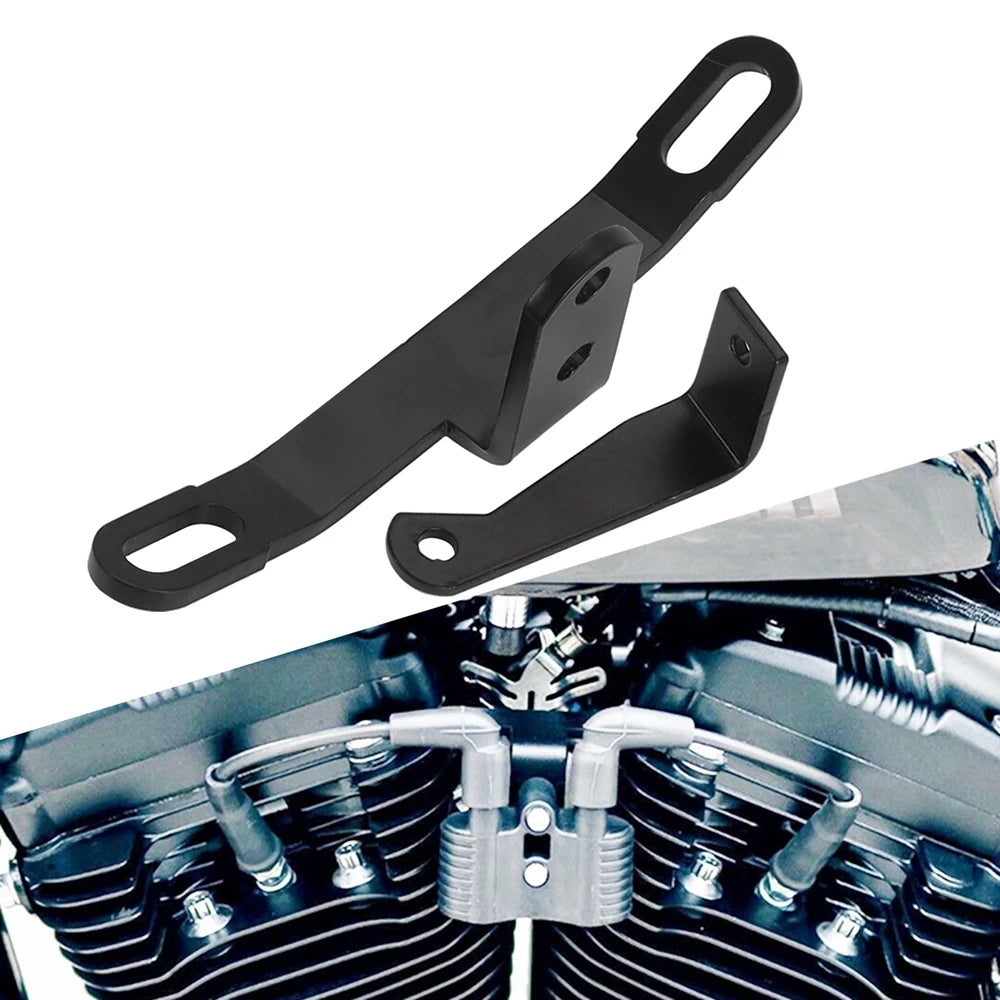

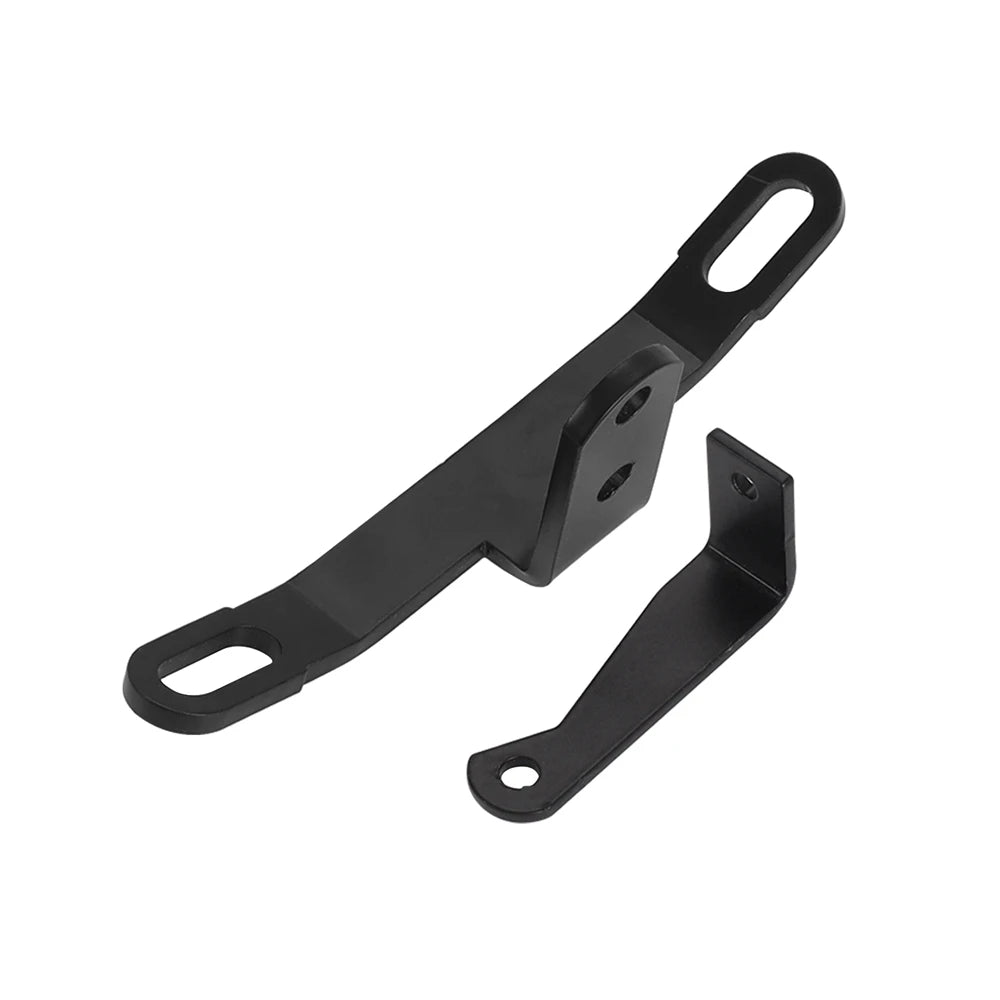

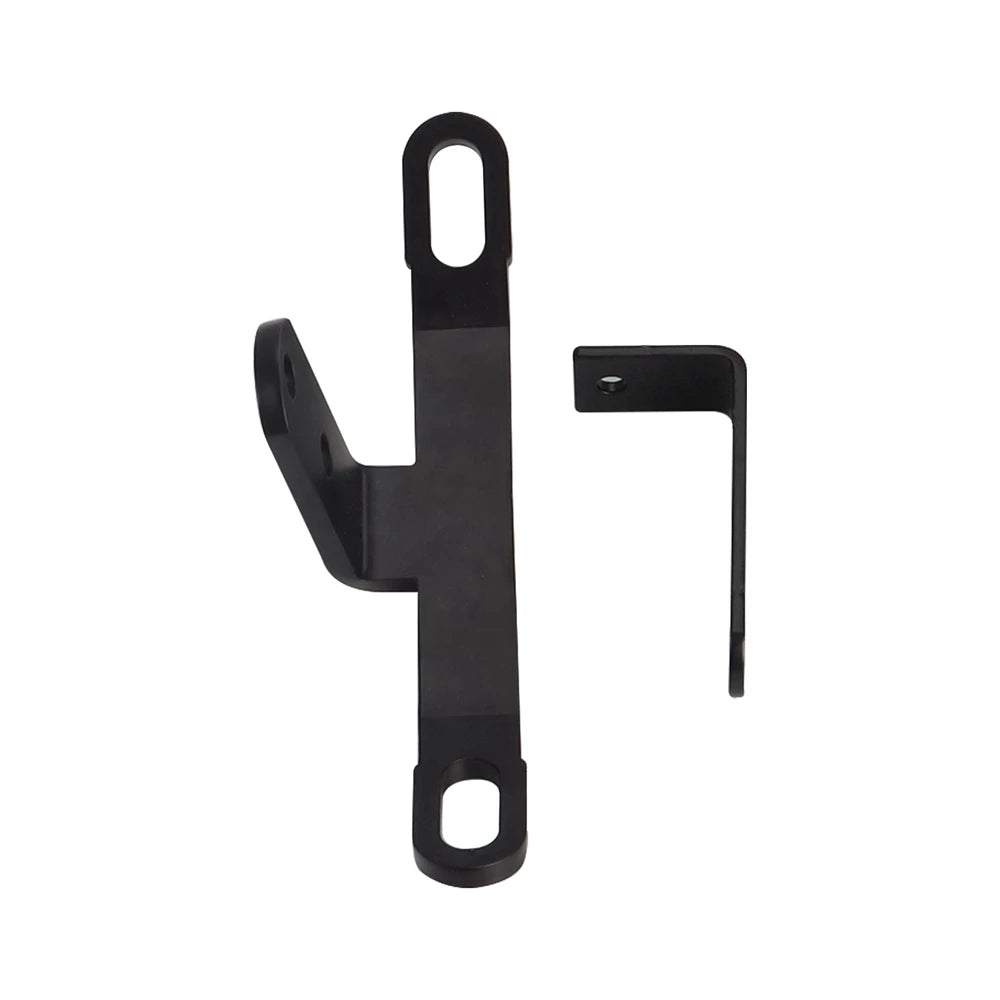

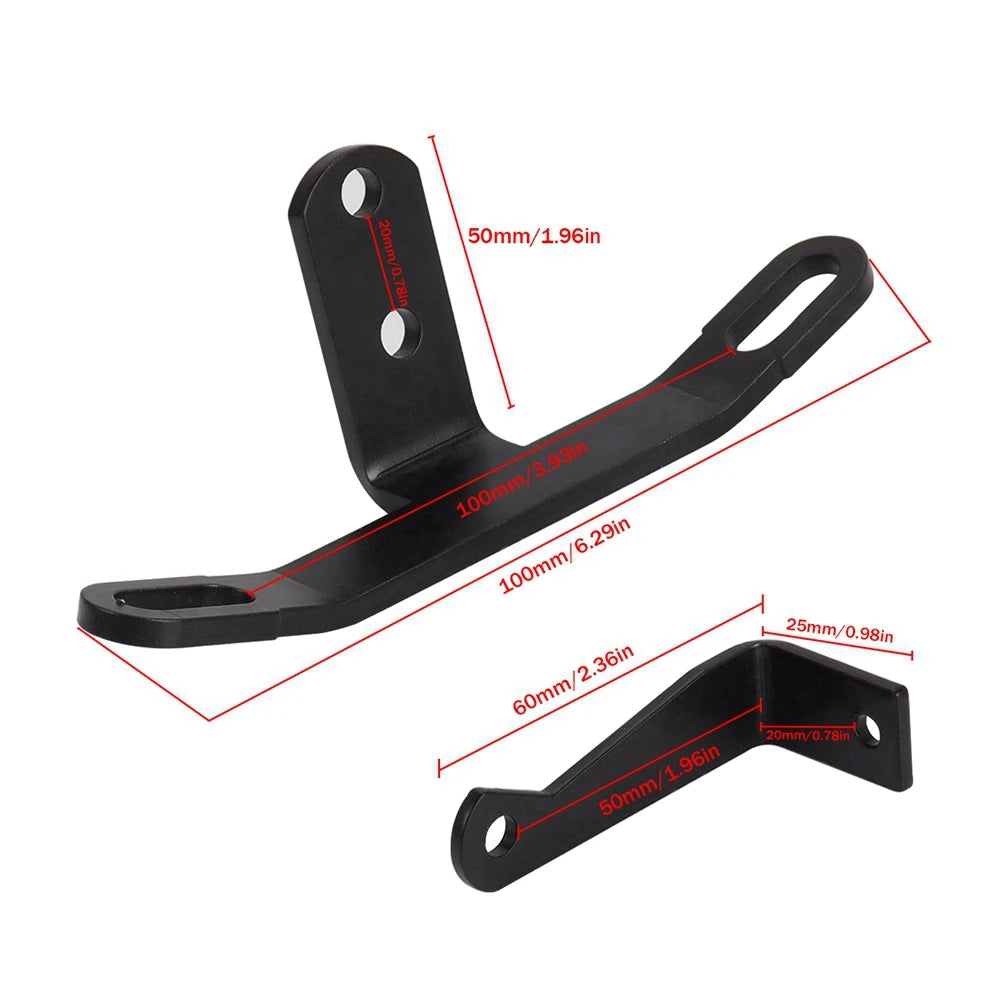

The two-piece steel bracket set repositions the ignition coil and key switch away from the stock location, freeing up space for other modifications or improving overall aesthetics on XL-chassis bikes.

The brackets are finished in black and are built from iron, matching the industrial character of the Sportster platform. The kit is compatible with Sportster Iron 883, 1200, Super Low XL883L, and Custom variants from 2007 through 2022.

Why it makes a difference

The coil and ignition key relocation bracket kit gives Sportster builders a straightforward way to reposition two components that often interfere with custom seat, tank, or wiring modifications. By moving the coil and key switch to a new location, you gain clearance for other parts without rerouting major wiring harnesses.

The black iron construction blends with the stock hardware found on Sportster models, so the brackets do not look out of place on a clean build or a heavily customized bike. The finish is consistent across both pieces in the kit.

Because the brackets use existing mounting points on the XL chassis, installation does not require drilling new holes into the frame. The two-bracket design splits the coil and key relocation into discrete, manageable steps.

Installation

1. Remove the seat and locate the stock coil and ignition key switch on the XL frame. 2. Disconnect the coil and ignition key wiring connectors and note their routing. 3. Remove the OEM coil and key switch mounting hardware. 4. Position the relocation brackets using the existing frame mounting points and secure with the original hardware. 5. Mount the coil and ignition key switch to the new bracket positions and reconnect all wiring connectors. 6. Reinstall the seat and verify that the coil and key switch are secure and fully operational before riding.

Available in Black.

Fitment

This part is listed for Harley-Davidson Sportster Iron 883 (2007–2022), Harley-Davidson Sportster 1200 (2007–2022), Harley-Davidson Sportster Super Low XL883L (2007–2022) and Harley-Davidson Sportster Custom (2007–2022). Check your model year and trim against the list above before ordering.

Questions riders ask

Which Sportster models does this bracket kit fit?

The kit is listed for Harley-Davidson Sportster Iron 883, 1200, Super Low XL883L, and Custom XL models from 2007 through 2022.

What is included in the kit?

The kit includes two black iron brackets — one for the coil relocation and one for the ignition key switch relocation.

Your order ships free, and the bracket kit is covered by a 1-year warranty against defects.
