Crash Bar Engine Guard For Harley-Davidson Touring - 2009 to 2024

Crash Bar Engine Guard For Harley-Davidson Touring - 2009 to 2024

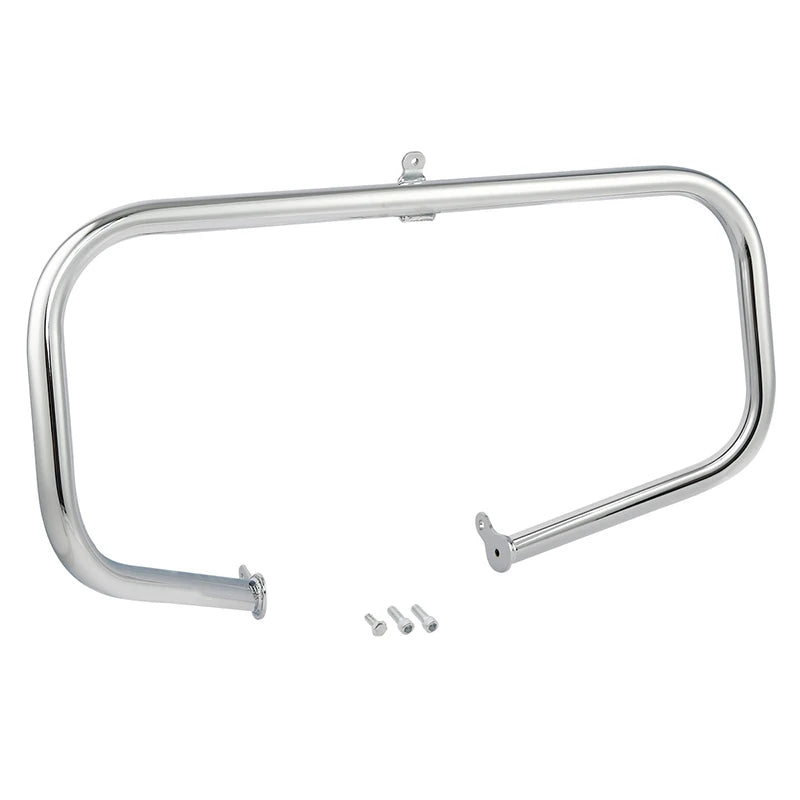

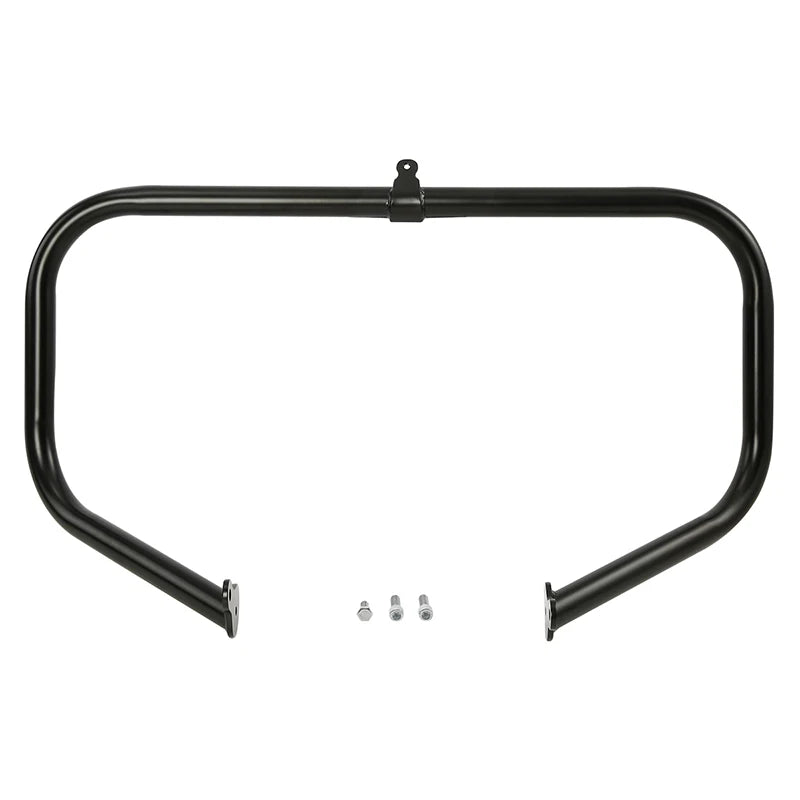

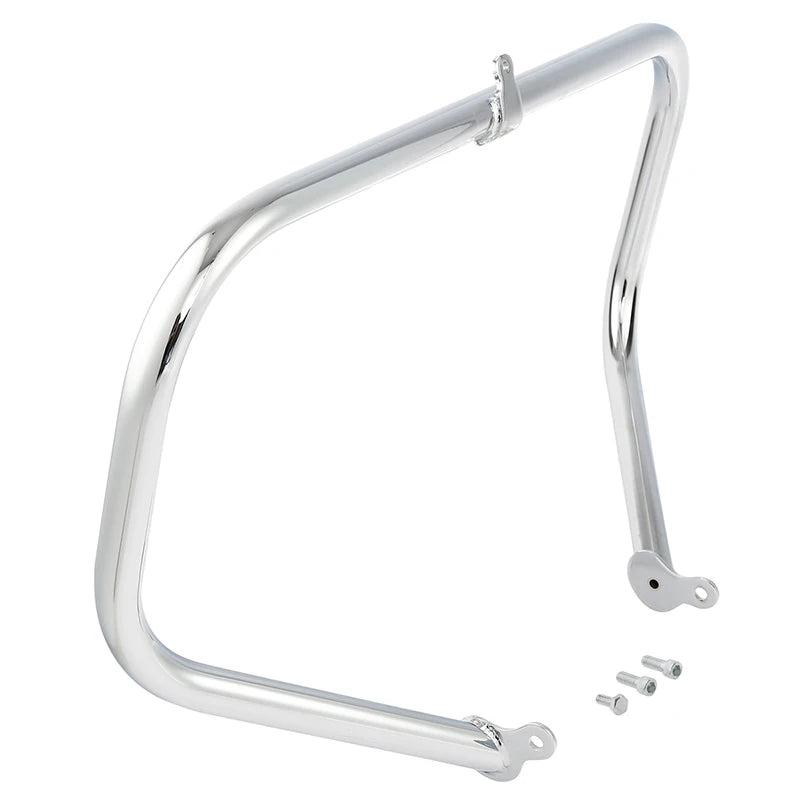

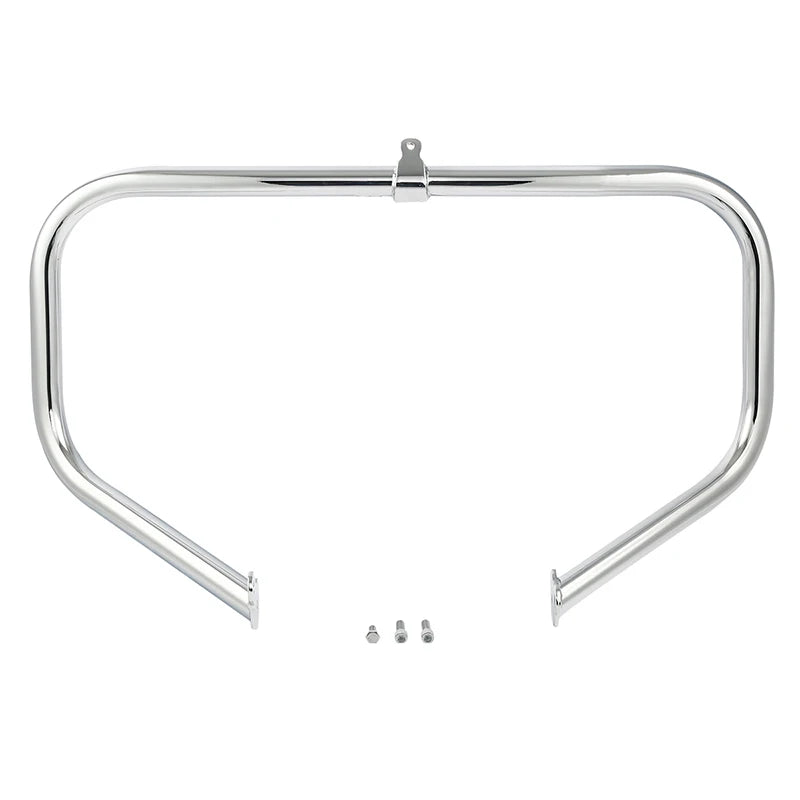

This crash bar engine guard is designed to protect the lower engine of Harley-Davidson Touring models from 2009 through 2024, covering the Road King, Road Glide, and Street Glide. Built from steel tubing with a 1-1/4-inch diameter, it matches the OEM mounting configuration and serves as a direct replacement for part number 49050-09A.

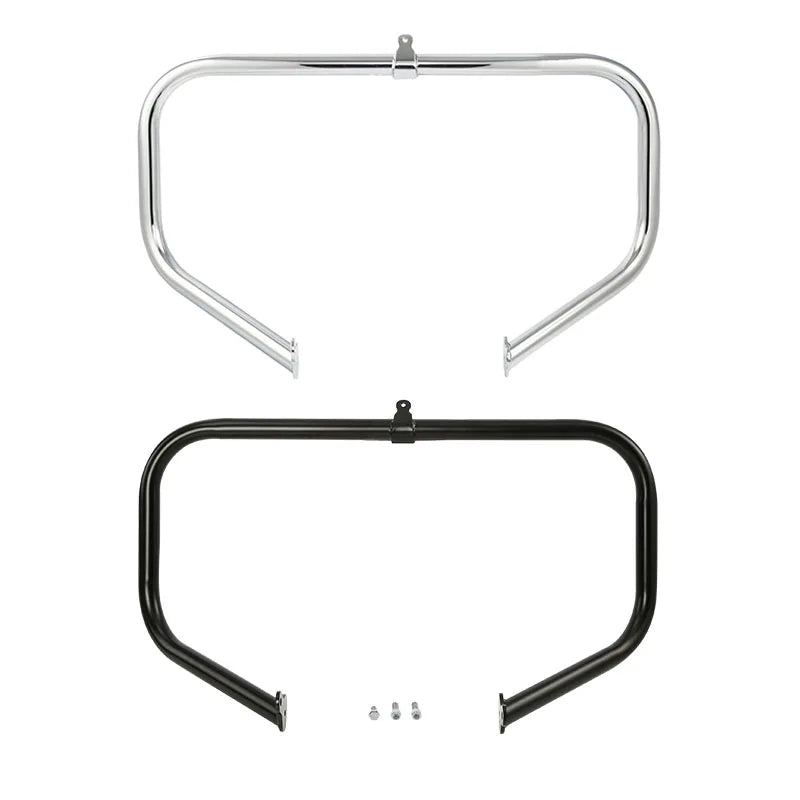

The guard is offered in three finishes — Chrome, Matte Black, and Vivid Black — so it can be matched to the bike's existing trim. Hardware is included for installation.

Why it makes a difference

The steel construction and 1-1/4-inch tube diameter provide a sturdy barrier between the engine cases and road hazards in the event of a tip-over or low-speed drop. Protecting the engine and frame at these contact points can prevent costly damage.

As a direct replacement for OEM part 49050-09A, this crash bar uses the factory mounting points on Road King, Road Glide, and Street Glide models, keeping the installation straightforward with no modification to the frame required.

Three finish options let you keep the guard consistent with the rest of the bike. Chrome suits classic Harley styling, while Matte Black and Vivid Black work with blacked-out or contemporary builds.

Installation

Position the crash bar against the OEM mounting points on the frame, one side at a time. Align the mounting tabs with the existing holes or brackets on the frame. Hand-thread the supplied hardware to hold the bar in place. Torque all fasteners to the specification recommended in your model's service manual. Verify the bar is seated evenly on both sides before riding.

Available in Chrome, Matte Black and Vivid Black.

Fitment

This part is listed for Harley-Davidson Road King (2009–2024), Harley-Davidson Road Glide (2009–2024) and Harley-Davidson Street Glide (2009–2024). Check your model year and trim against the list above before ordering.

Questions riders ask

Which Harley-Davidson models does this crash bar fit?

It is designed for the Road King, Road Glide, and Street Glide Touring models from 2009 through 2024, and replaces OEM part number 49050-09A.

What finish options are available, and is hardware included?

The guard is available in Chrome, Matte Black, and Vivid Black; mounting hardware is included in the box.

All orders ship free, and this crash bar is backed by a 1-year warranty against defects.
