Radiator Guard Grille For Kawasaki Z900 - 2017 to 2024

Radiator Guard for Kawasaki Z900 (2017–2024)

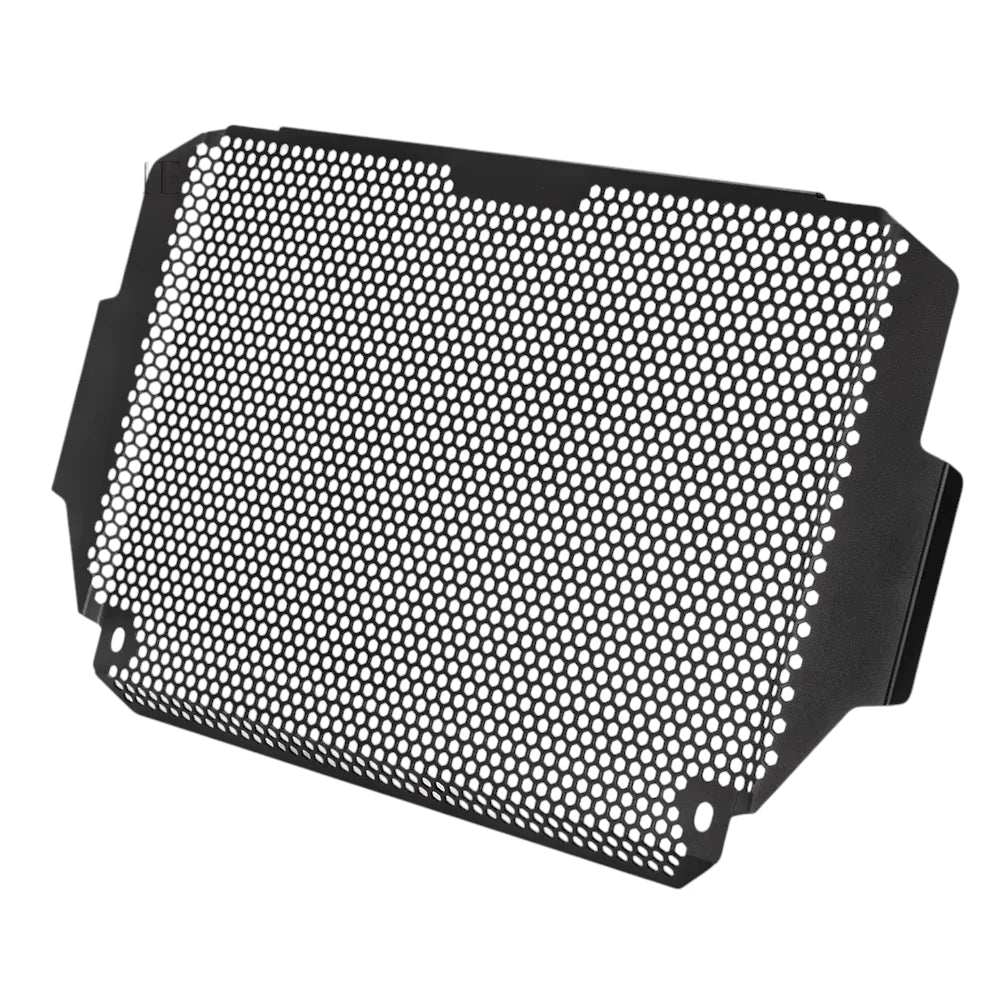

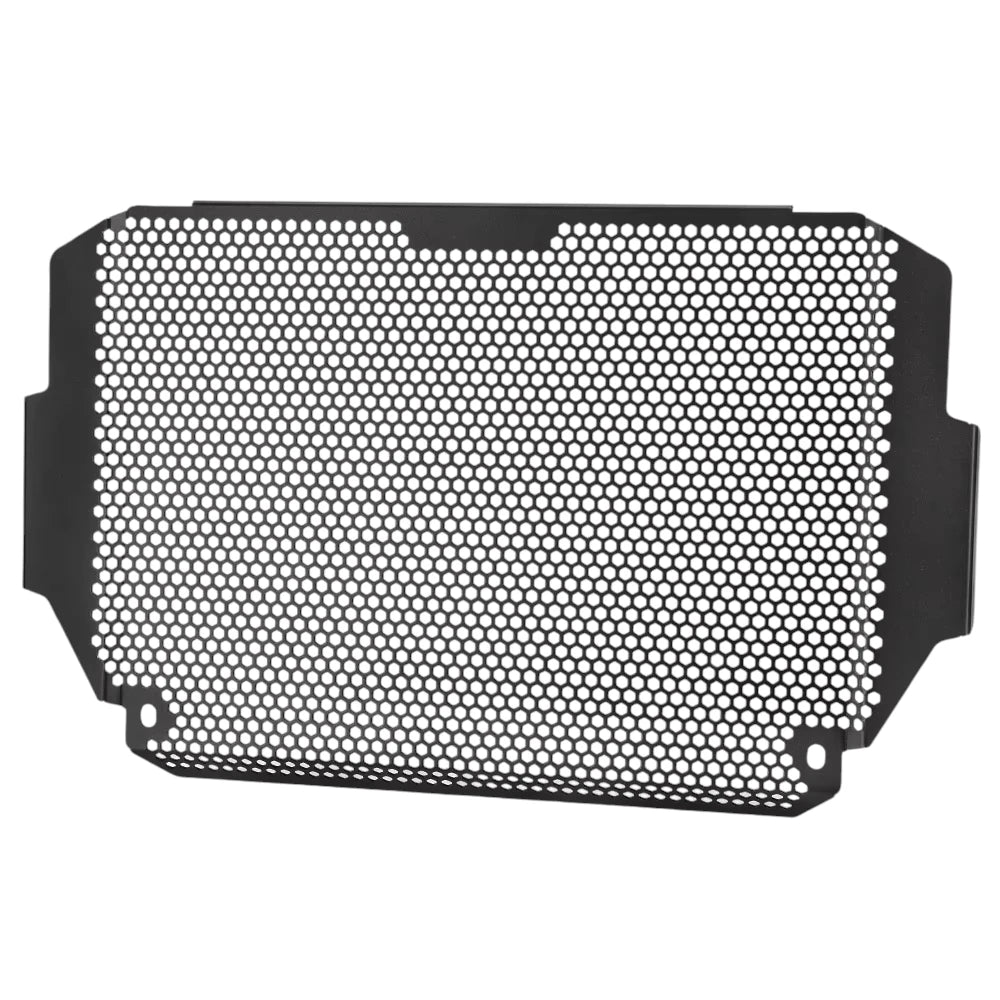

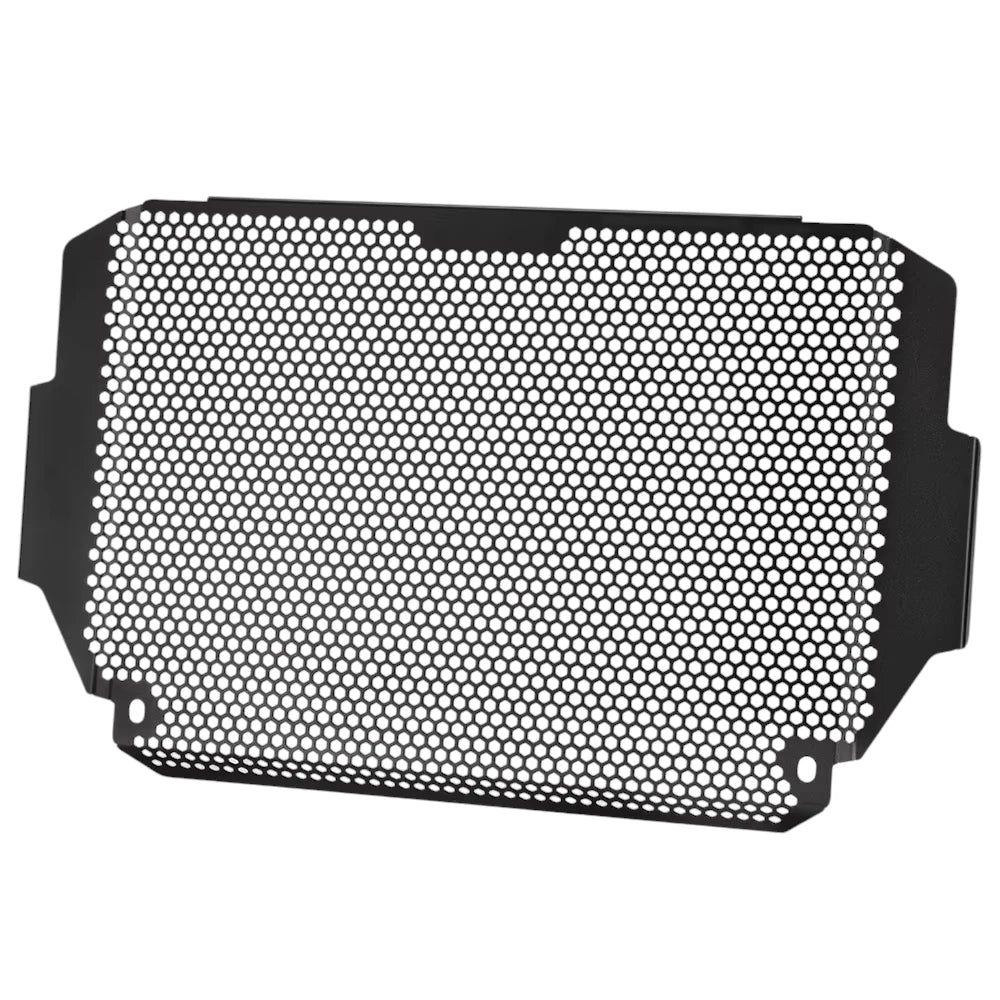

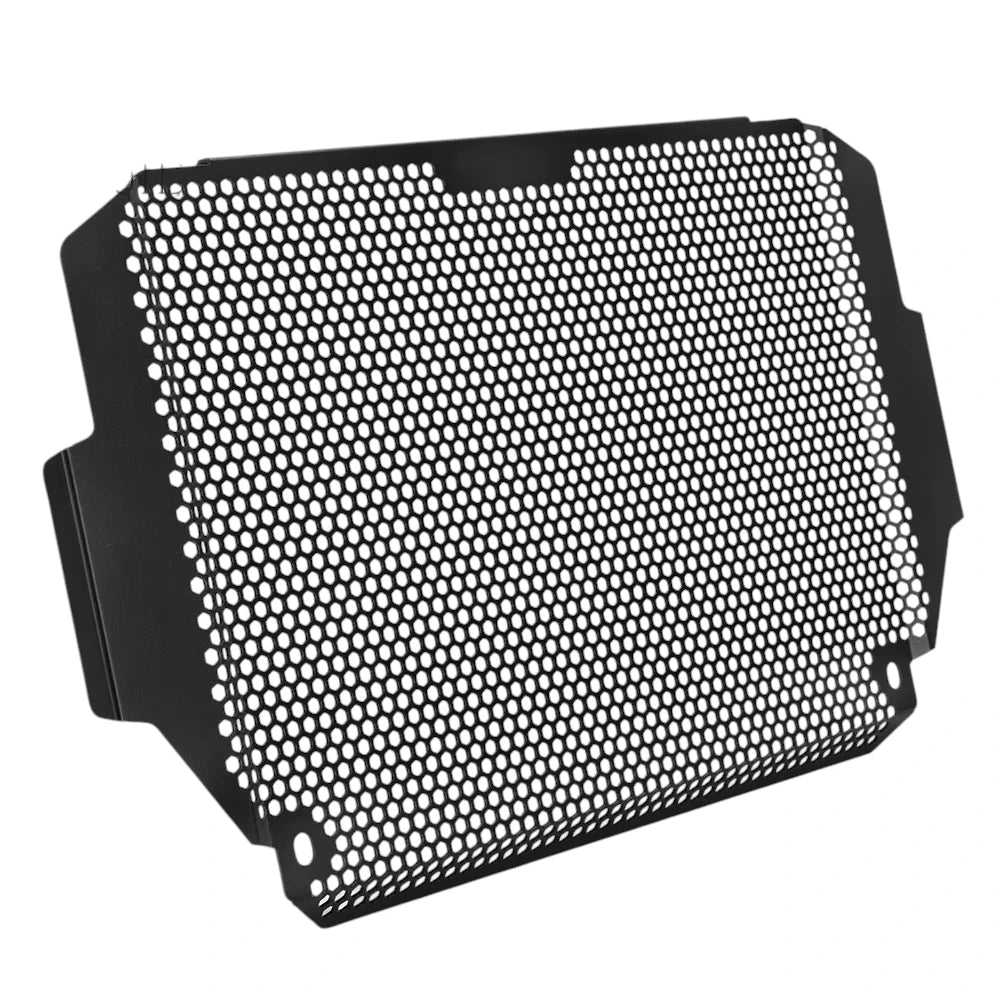

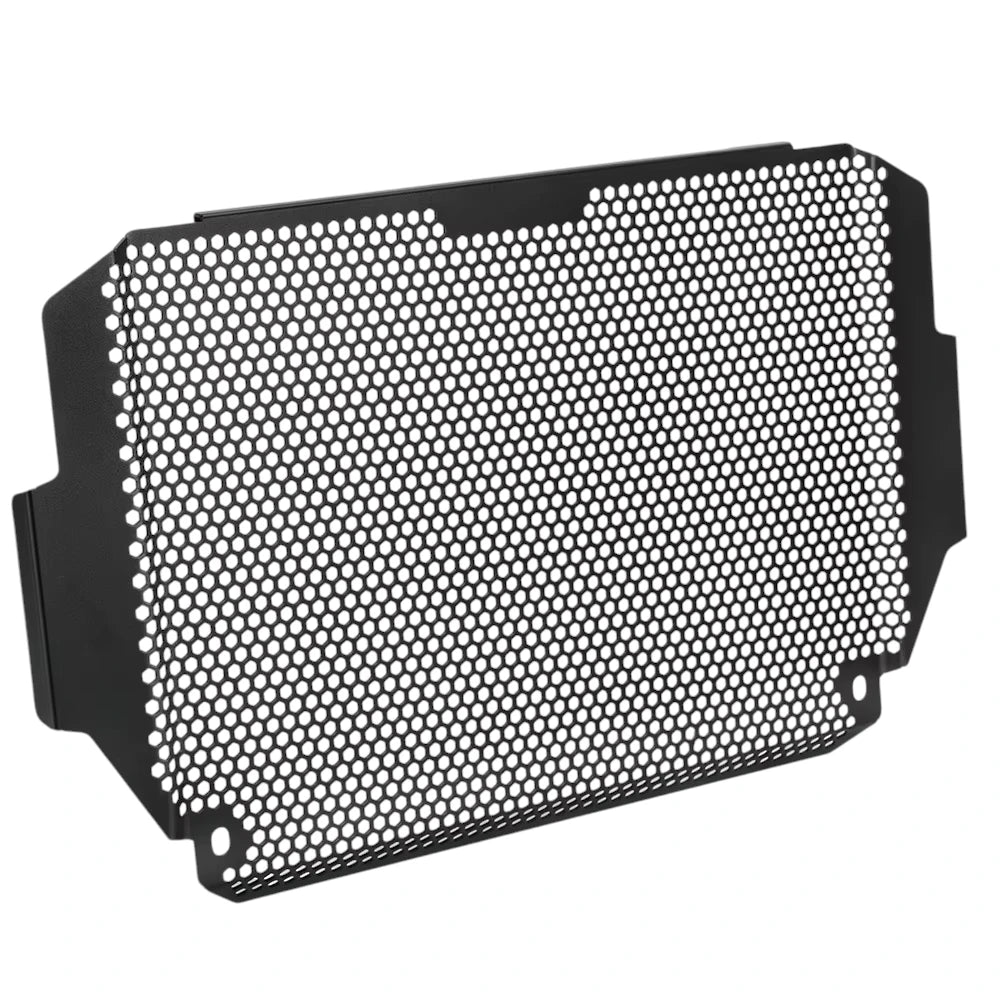

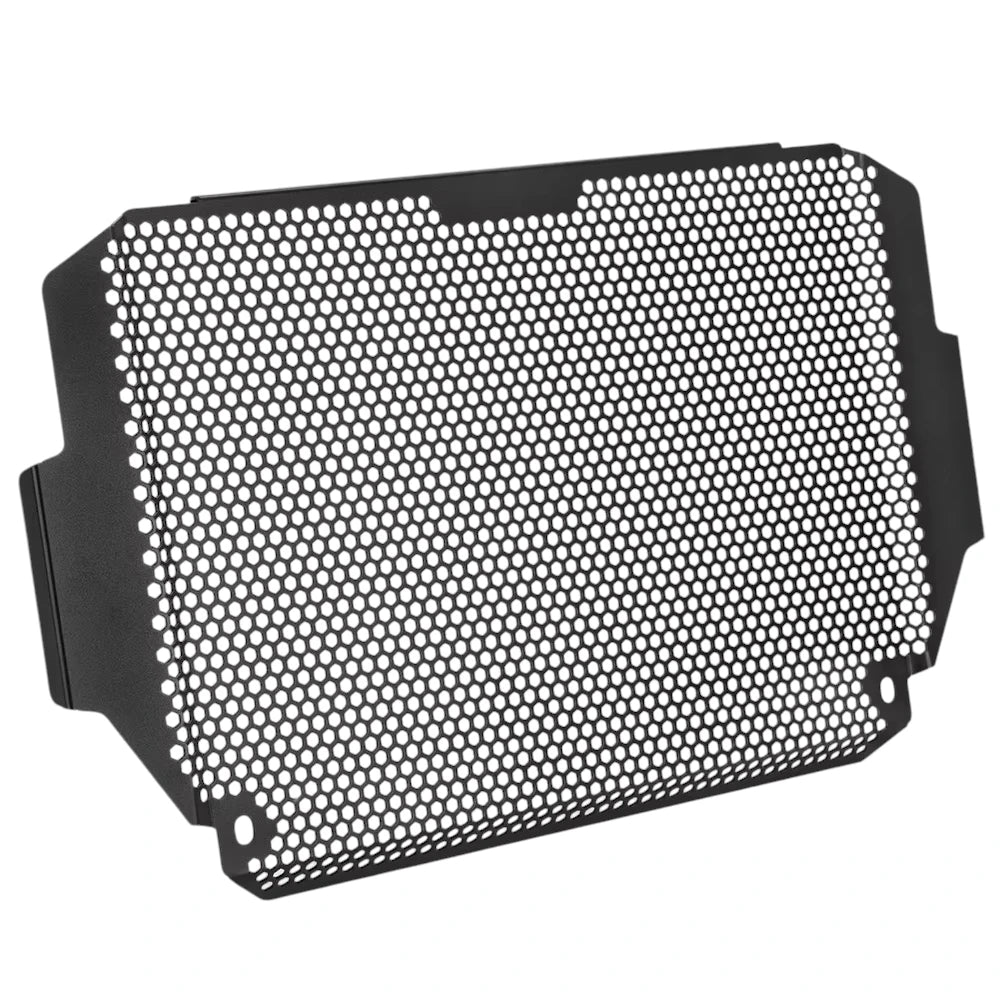

This radiator guard is a purpose-built protective grille that mounts directly in front of the radiator on the Kawasaki Z900 and intercepts stone chips, gravel, and road debris before they can reach and deform the thin aluminium fins that make up the radiator core. It is designed specifically for the Z900's radiator geometry and produced to a construction standard appropriate to a bike at this performance level — not a universal fit adapted to the application, but a model-specific guard engineered to cover the full radiator face with hardware that matches the existing mounting points.

The Kawasaki Z900 is built to be ridden hard: 125 hp, a short-ratio gearbox, and a chassis tuned for fast road and occasional track use. Owners who use the bike at that level expose it to exactly the conditions that cause radiator fin damage — high-speed stone chip exposure on fast roads, gravel kicked up through canyon sections, and road surface debris during track days. Without a guard, fin damage from this kind of use accumulates across a riding season into a progressive reduction in cooling efficiency that is difficult to reverse without replacing the radiator.

How Radiator Fin Damage Affects the Z900

The aluminium cooling fins on the Z900's radiator are engineered for maximum heat transfer: they are typically 0.1–0.15mm thick and spaced closely to maximise the surface area available for heat exchange with passing airflow. This geometry is optimal for cooling but offers no resistance to impact — a stone chip at motorway speed bends several adjacent fins flat against the core, creating a localised dead zone where air cannot flow through. On a high-output engine like the Z900's 948cc inline-four, a radiator that is progressively losing effective cooling area has a real consequence for operating temperatures under hard, sustained use.

The accumulation of fin damage is gradual enough that most owners only notice it when the radiator is inspected closely, often long after the damage across the core has become significant. The cost of a radiator guard is a fraction of the cost of a replacement radiator or a repair that requires straightening individual fins, and a guard fitted before the first stone chip event prevents the damage entirely rather than attempting to manage it after the fact.

Construction and Airflow

This guard is constructed from aluminium or stainless steel with a finish suited to long-term outdoor exposure and repeated exposure to road grime, water, and cleaning products. At this price point the construction is designed to absorb repeated stone impact without deforming, which means the guard itself does not need to be replaced after a single stone chip event the way a plastic guard eventually does. The mesh or grille aperture is sized to stop the stones and debris that cause fin damage while allowing the majority of airflow to pass through to the radiator core unimpeded.

The Z900's cooling system operates with sufficient thermal headroom that the marginal airflow restriction a guard introduces does not raise operating temperature by a measurable amount under normal road conditions. At sustained motorway cruise speeds the guard has no detectable effect on engine temperature. In very demanding conditions — a track day in high ambient temperatures with the bike running at full throttle for extended periods — a small temperature increase is theoretically possible, but this is within the system's design parameters and is not a meaningful concern for the vast majority of road use.

Fitment and Installation — Kawasaki Z900 2017–2024

This guard is designed specifically for the Kawasaki Z900 produced from 2017 through 2024, a single generation with consistent radiator geometry across the full production run. It mounts to the existing radiator mounting points using the supplied hardware and does not require drilling, tapping, or any permanent modification to the frame or surrounding bodywork. Installation requires basic hand tools and takes approximately 20–30 minutes on a first fitting, and the guard is fully removable at any time without leaving any trace on the bike.

The guard aligns with the Z900's radiator face and the surrounding front-end bodywork without requiring shimming or adjustment. The model-specific fit means it covers the full radiator face rather than a portion of it, and the edges align cleanly with the adjacent panels so the finished result is consistent with the quality of the factory presentation rather than looking like a universal part that has been adapted to fit.

Frequently Asked Questions

Does the guard noticeably affect engine temperature on the Z900?

Under normal road riding conditions the temperature effect is not measurable. The Z900's cooling system is sized with margin beyond what the engine requires at road speeds, and the airflow reduction a guard introduces is small relative to that margin. The only scenario where a temperature effect might be detected is sustained maximum-effort riding in high ambient temperatures, such as a warm track day — and even in those conditions, the temperature increase, if present at all, is within the system's operating range and does not represent a concern. For road use in any conditions, fitting this guard has no meaningful effect on engine temperature.

Does it fit the Z900RS or Z900SE as well?

This guard is listed for the standard Kawasaki Z900 (2017–2024). The Z900RS uses a different front-end layout and different radiator mounting geometry relative to the standard Z900, and a guard designed for the Z900 will not fit the Z900RS correctly. The Z900SE uses the same chassis as the standard Z900 and is likely compatible, but the fitment should be verified against the specific mounting points of the SE variant before ordering.

Is all the installation hardware included?

Yes. The guard is supplied with all hardware required to mount it to the Kawasaki Z900's existing radiator mounting points. No additional fasteners or hardware need to be sourced separately, and no existing radiator mounting hardware is permanently replaced or modified during installation.
